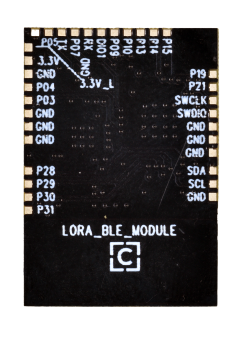

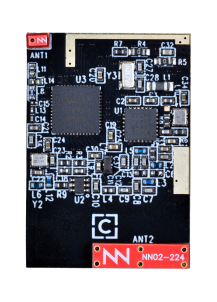

CBTLRM01 is a powerful, multiprotocol combo-module that supports Bluetooth® Low Energy and LoRaWAN® using Nordic's nRF52832 and Semtech's SX1262 SoC. The module is designed for high data rate long-range wireless communication in the 2.4GHz ISM band for BLE and 150 MHz to 960 MHz bands for LoRa®. With dual support for BLE and LoRa®, this module provides extended range at extremely low power enabling it for wide range of applications including but not limited to smart utility meters, agricultural & horticulture sensors, and industrial automation.

Want to order in bulk? Request a Quote
Bluetooth : 5.3 low energy modules
SOC : nRF52832, SX1262
Line of Sight : 2000m+
CPU : ARM Cortex-M4, 64MHz
Security : ARM HW
Memory : 512/256KB Flash, 64KB RAM
Antenna : 2 x Fractus chip antennas
Certifications : CE RED, WPC, FCC (applied)

PCB Design

Software Development Kit

Evaluation Kit

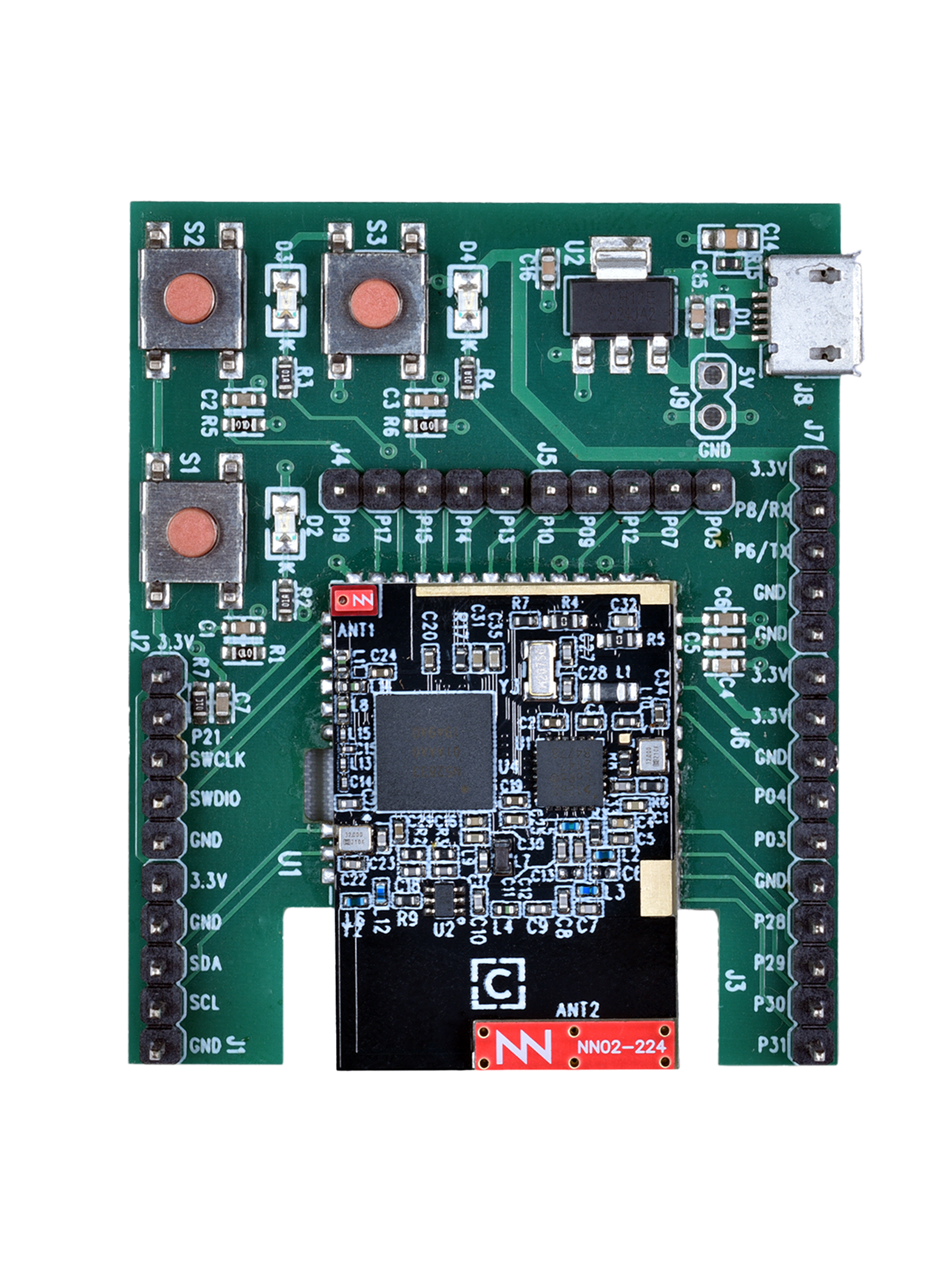

The evaluation board, CBTLRM-EVK01 is designed for the dual-combo module, CBTLRM01 that supports Bluetooth Low Energy and LoRaWAN using Nordic's nRF52832 and Semtech's SX1262 SoCs.
