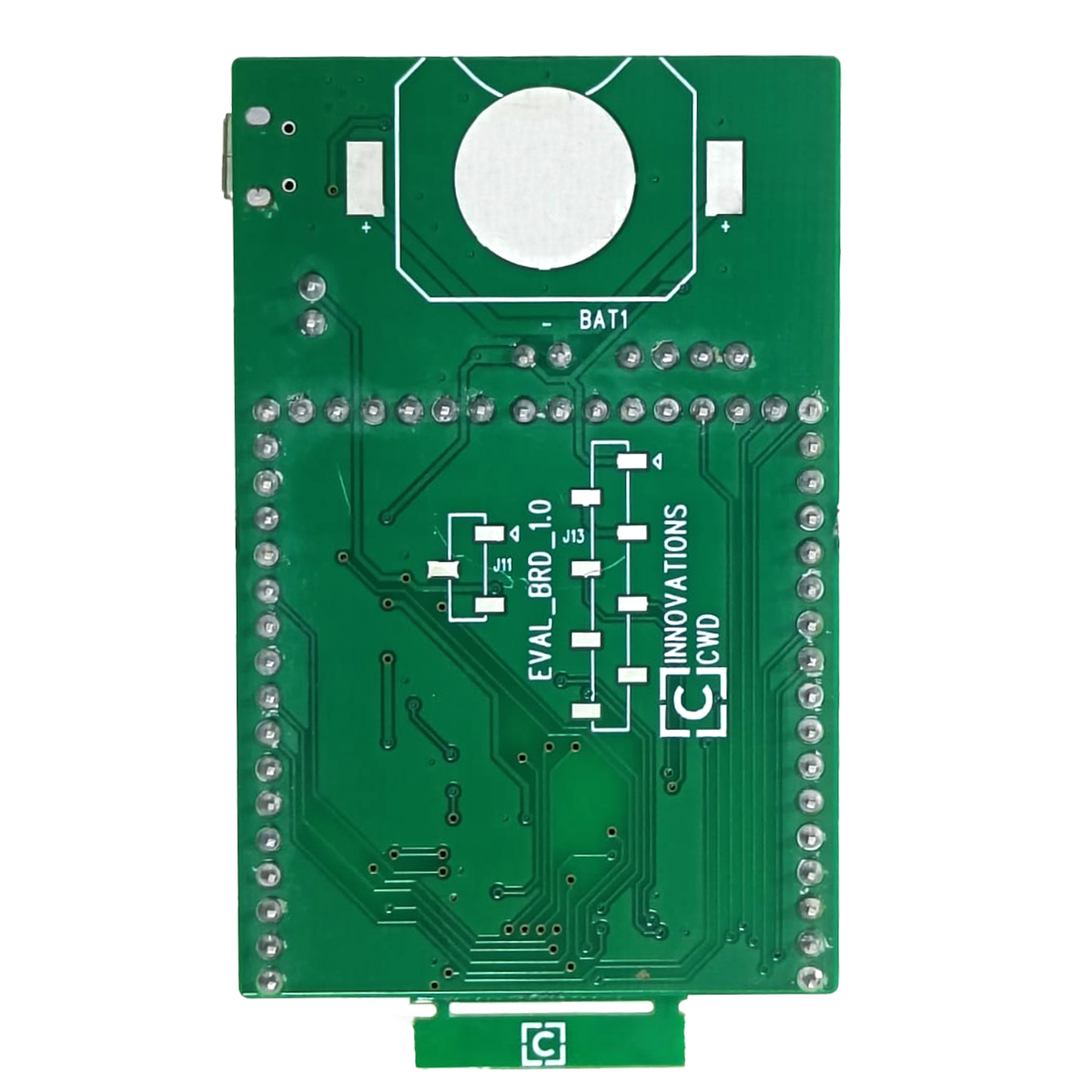

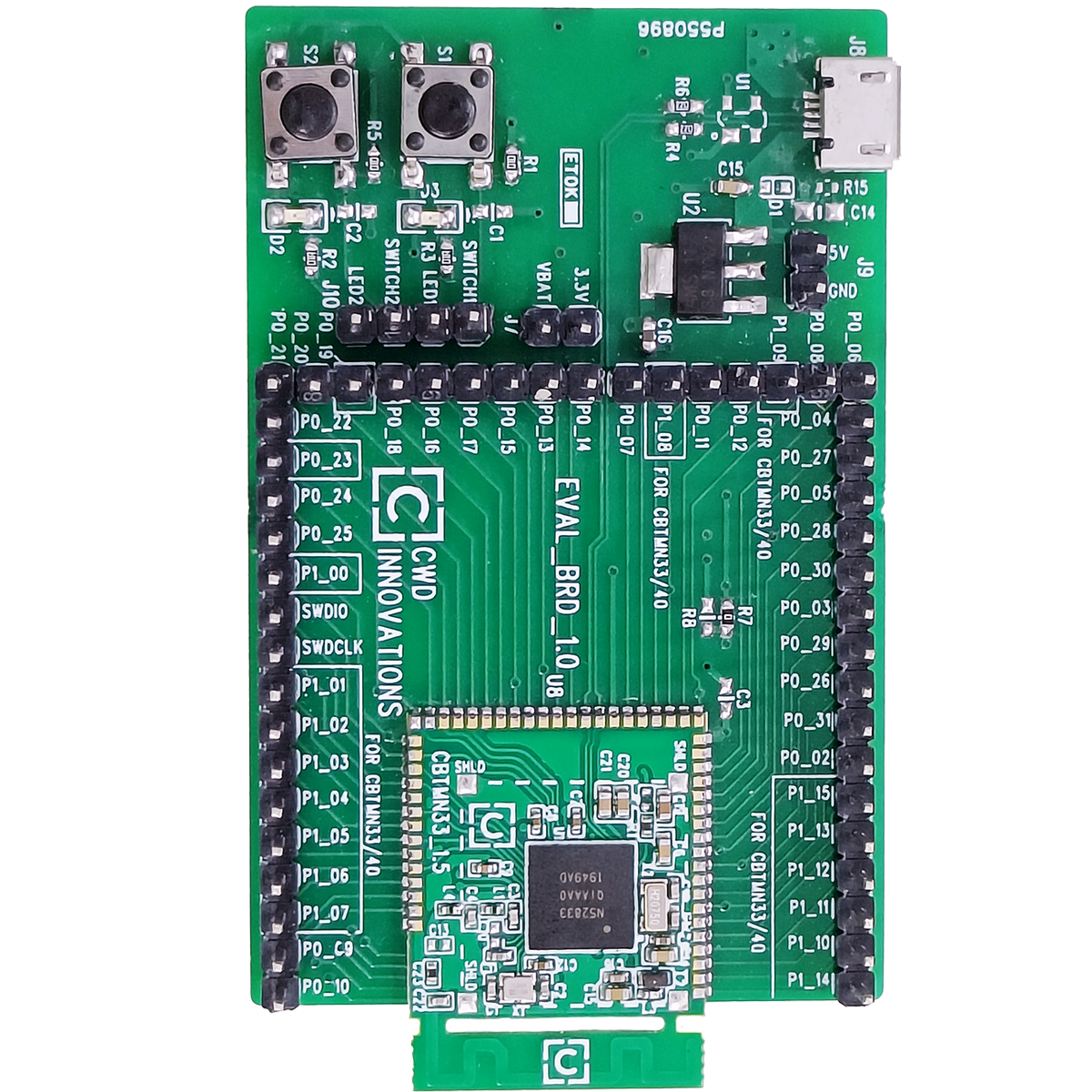

This Evaluation Board is designed for CBTMN33 a higher-end Low power 2.4 GHz module by CWD using Nordic Semiconductor’s nRF52833 SoC.

  • Supports all the features of CBTMN33
  • Delivers high data rates for short- and long-range wireless communication in the 2.4 GHz ISM band using Low power 2.4 GHz.
  • Can operate in concurrent Low power 2.4 GHz, Zigbee, Thread, 802.15.4, ANT protocols
  • The board is based on Nordic Semiconductor’s nRF52 chip
5V input supply
Micro-USB Jack / J9 pins
Coin cell battery supply
3.3V external supply pins available on board
2 switches available on board
2 LEDs available on board
All GPIOs available at test point on board
