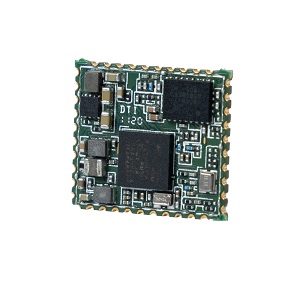

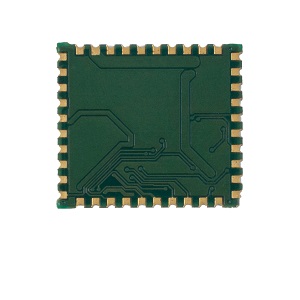

CNBMM01

CNBMM01 is an NB module based on MediaTek's MT2625 chipset which supports a full frequency band from 450MHz to 2.1GHz of 3GPP R13 (NB1) and R14 (NB2) standards. It can be used for a wide range of IoT applications including smart home control, logistics tracking and smart meters.

Datasheet

Want to order in bulk? Request a Quote

Features
Specifications

NB-IoT	:	3GPP R13/R14 NB-IoT standard
SOC	:	MT2625
CPU	:	ARM Cortex-M4, 156MHz
Crystals	:	1 x 32.768KHz and 1 x 26MHz crystals
Memory	:	32MB PSRAM, 32MB Flash
Certifications	:	CE RED, WPC, FCC (applied)

UART	:	2	Power Consumption (Max/Min)	:	10.8mA/4uA
SPI	:	1	Maximum Supply (V)	:	2.1
GPIO	:	16	Minimum Supply (V)	:	1.7
ADC	:	1	Maximum Temperature (°C)	:	85
PWM	:	4	Minimum Temperature (°C)	:	-40
I2S	:	2	I2C	:	1
