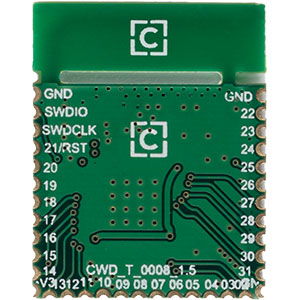

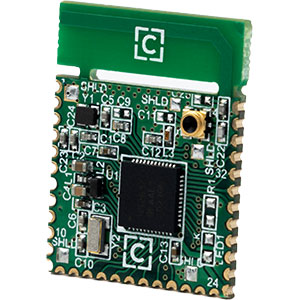

CBTMN32 is a multiprotocol module that supports Bluetooth 5.3 stack for BLE (Bluetooth Low Energy) and is designed for high data rate short-range wireless communication in the 2.4GHz ISM band. CBTMN32 supports protocol concurrency where Bluetooth mesh and Bluetooth Low Energy can be run simultaneously at 2 Mbps data rates. NFC and ANT protocols are also supported.

Want to order in bulk? Request a Quote
Bluetooth : 5.3 low energy modules
SOC : nRF52832
Line of Sight : 100m
CPU : ARM Cortex-M4, 64MHz
Crystals : 2 x 32.768kHz crystals
Memory : 512/256KB Flash, 64/32KB RAM
Antenna : PCB antennas, variants with chip
antennas, U.FL connectors available upon request
Certifications : CE RED, WPC, FCC (applied)

PCB Design

Software Development Kit
